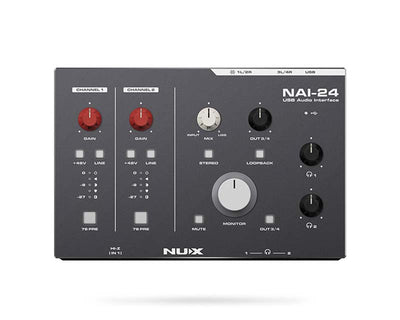

NAI-24
USB Audio Interface
- 2-in/4-out desktop USB audio interface with support for up to 32-bit/192kHz sample rate.

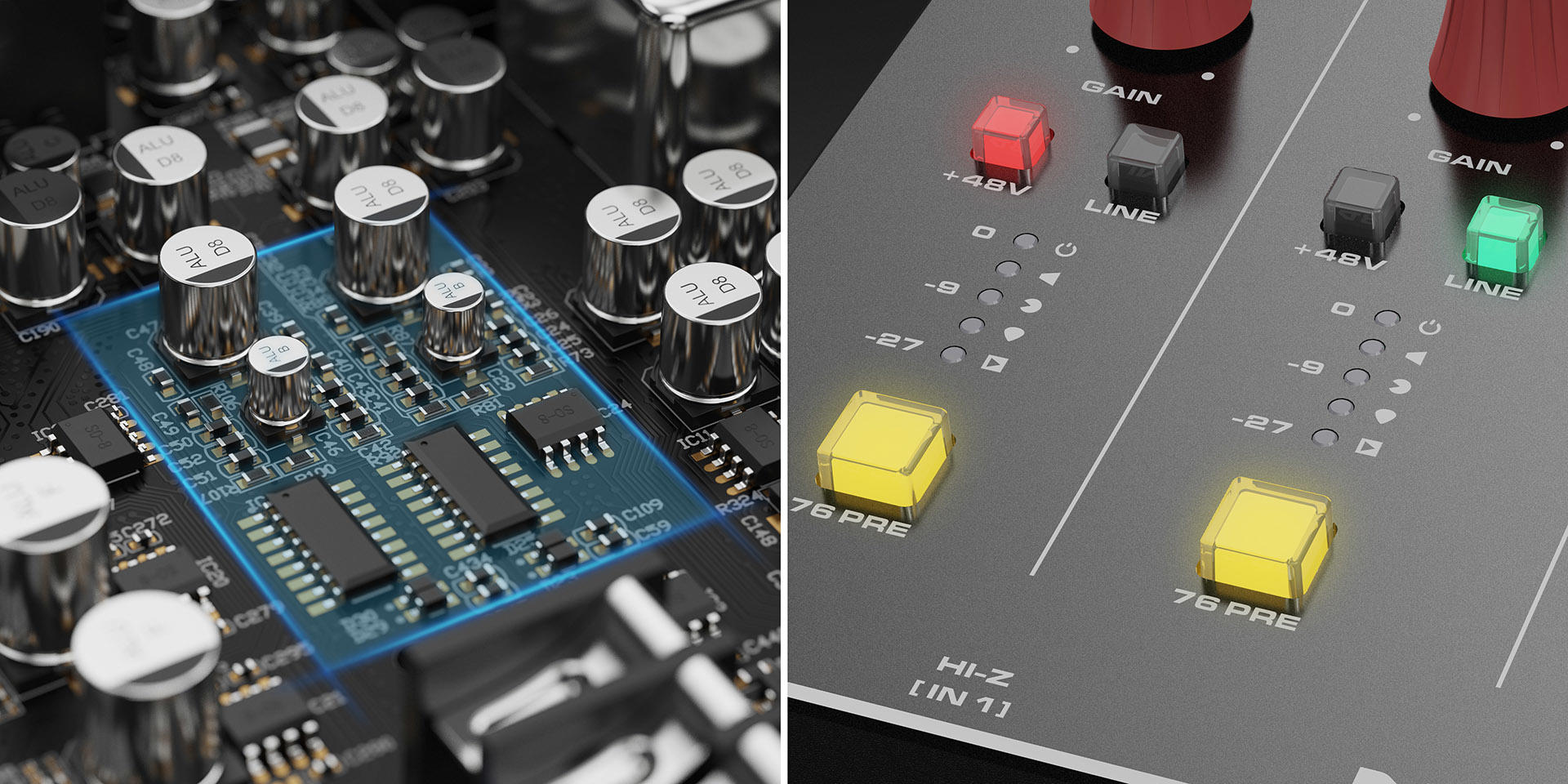

- Pure Class-A discrete transistor preamplifier delivering ultra-high dynamic range and resolution.
- FET type 76PRE compression circuit with multiple preset modes for various applications.
- Studio-grade audio transformer on Main Output 1L/2R channels for warm, professional sound characteristics.
- Additional 3L/4R output channels for auxiliary output, enhancing versatility in different setups.
- Two high-performance headphone amplifiers with routable channels for customized
monitoring.
- USB powered; no external power supply required.
- 48V phantom power with independent on/off control for each channel.
- Ultra-low latency direct monitoring channels for real-time performance.

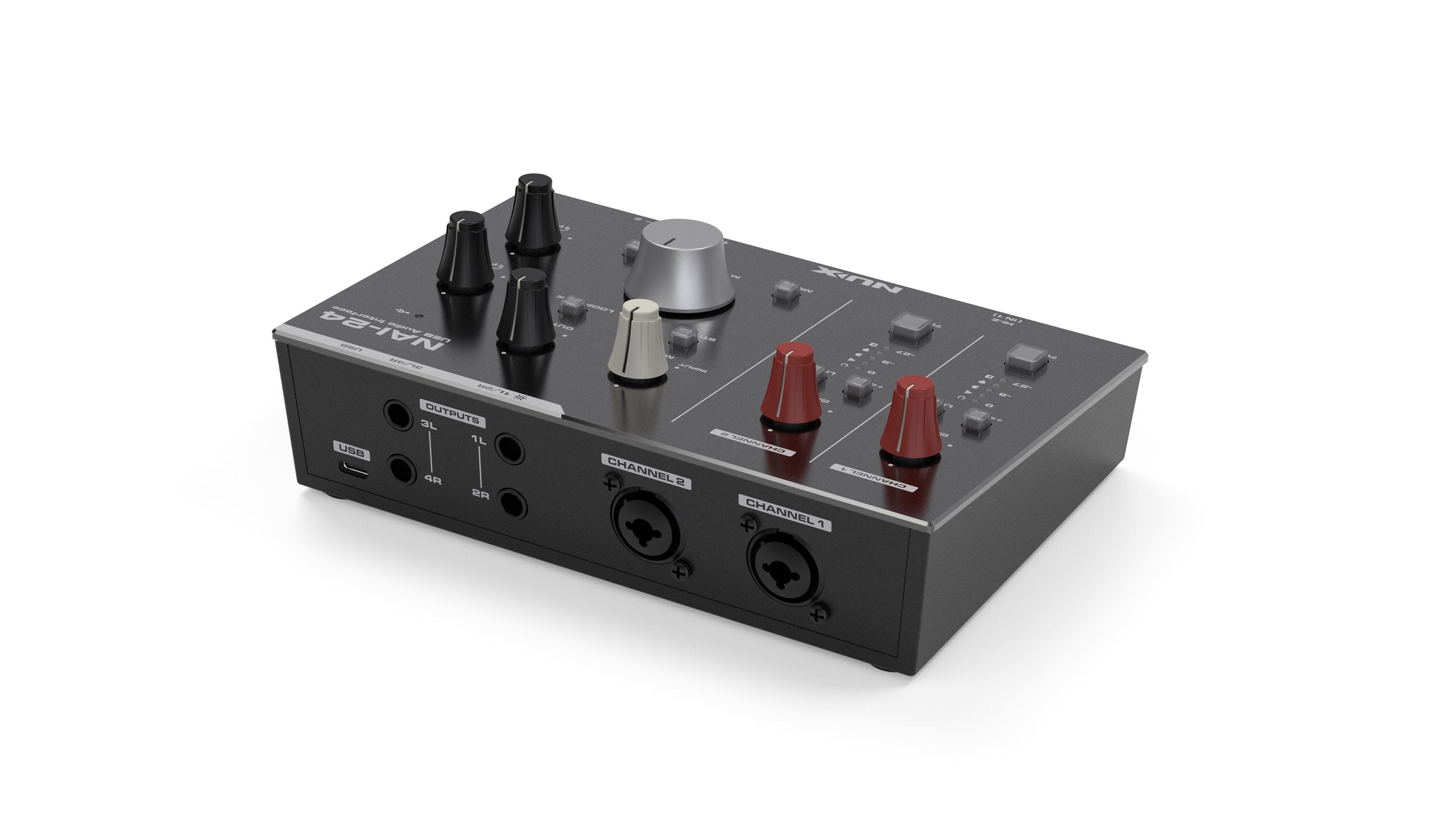

- Provides stable and reliable signal transmission using high-quality XLR connectors and 6.35mm connectors.
USB Recording
High-Resolution Audio
Condenser Mic Ready
Ultra-Low Latency
Premium Analog Design
Pairs well with
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
NAI-24
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
About the NAI-24
NAI-24 is designed for personal studios, it is compact and equipped with high-quality audio transformers. It features a pure Class A discrete transistor microphone preamp with up to 71dB of gain. Inspired by the classic 76 compressor, it includes a convenient and easy-to-use pure analog compressor. With support for a sampling rate of 32‐bit/192kHz, it allows for switching between two audio interface modes to accommodate different usage environments.
Boost Mode
Provides an additional 8dB of gain to the overall preamp, bringing the total microphone preamp gain to 71 dB.
Vocal Compression Mode
Designed with moderate attack and release characteristics based on vocal performance, delivering a smooth sound.
Guitar Compression Mode
Fast response and smooth release specifically set for guitar/bass, resulting in a more balanced and consistent volume.
Live Streaming Compression Mode
This mode offers fastest compression characteristics, ensuring signal integrity and clarity during live broadcasts.

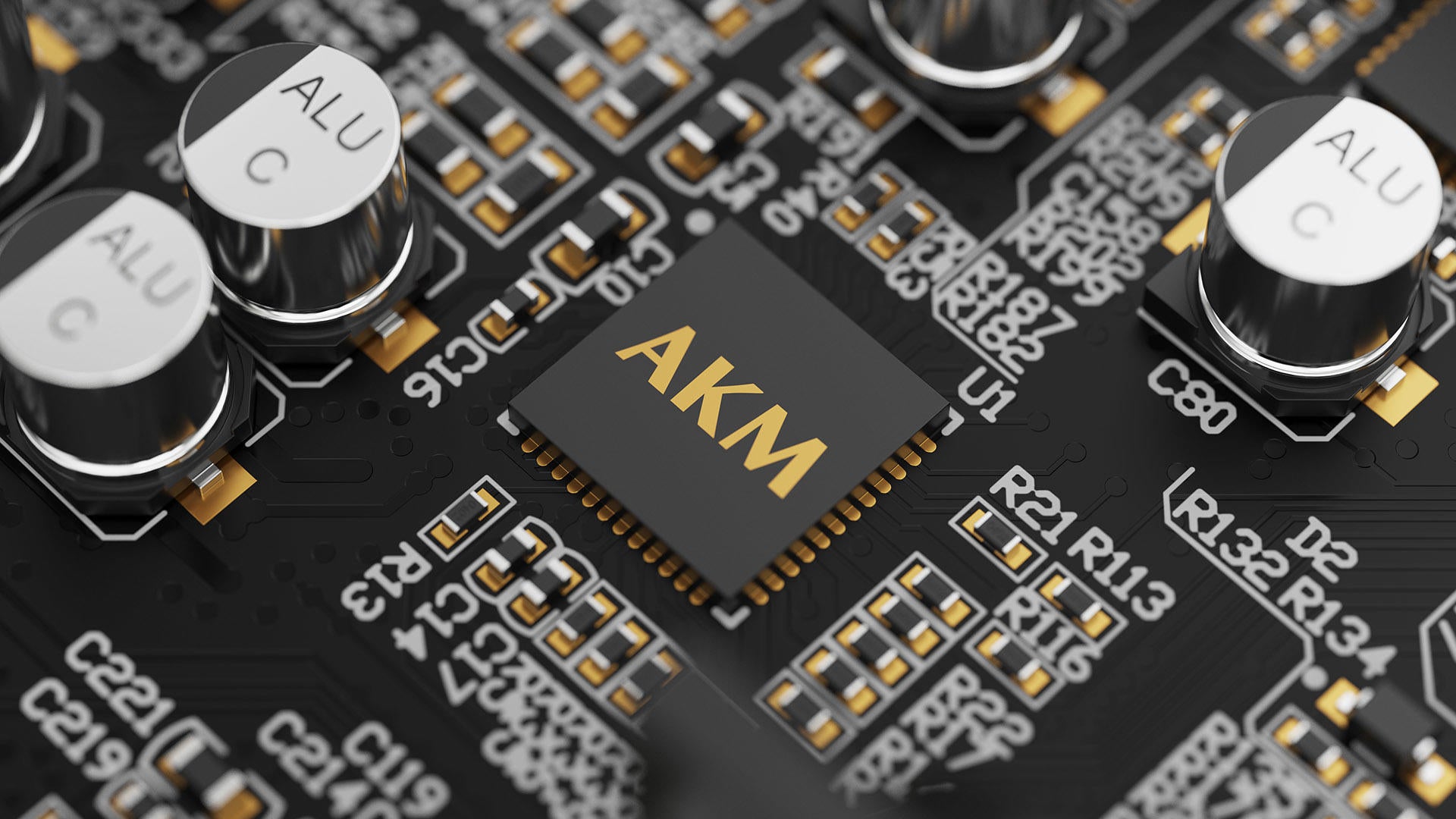

Professional AD/DA Conversion, Pure Sound Precision
Equipped with high-quality, professional AD/DA decoding chips from the renowned manufacturer AKM (Asahi Kasei Microdevices).

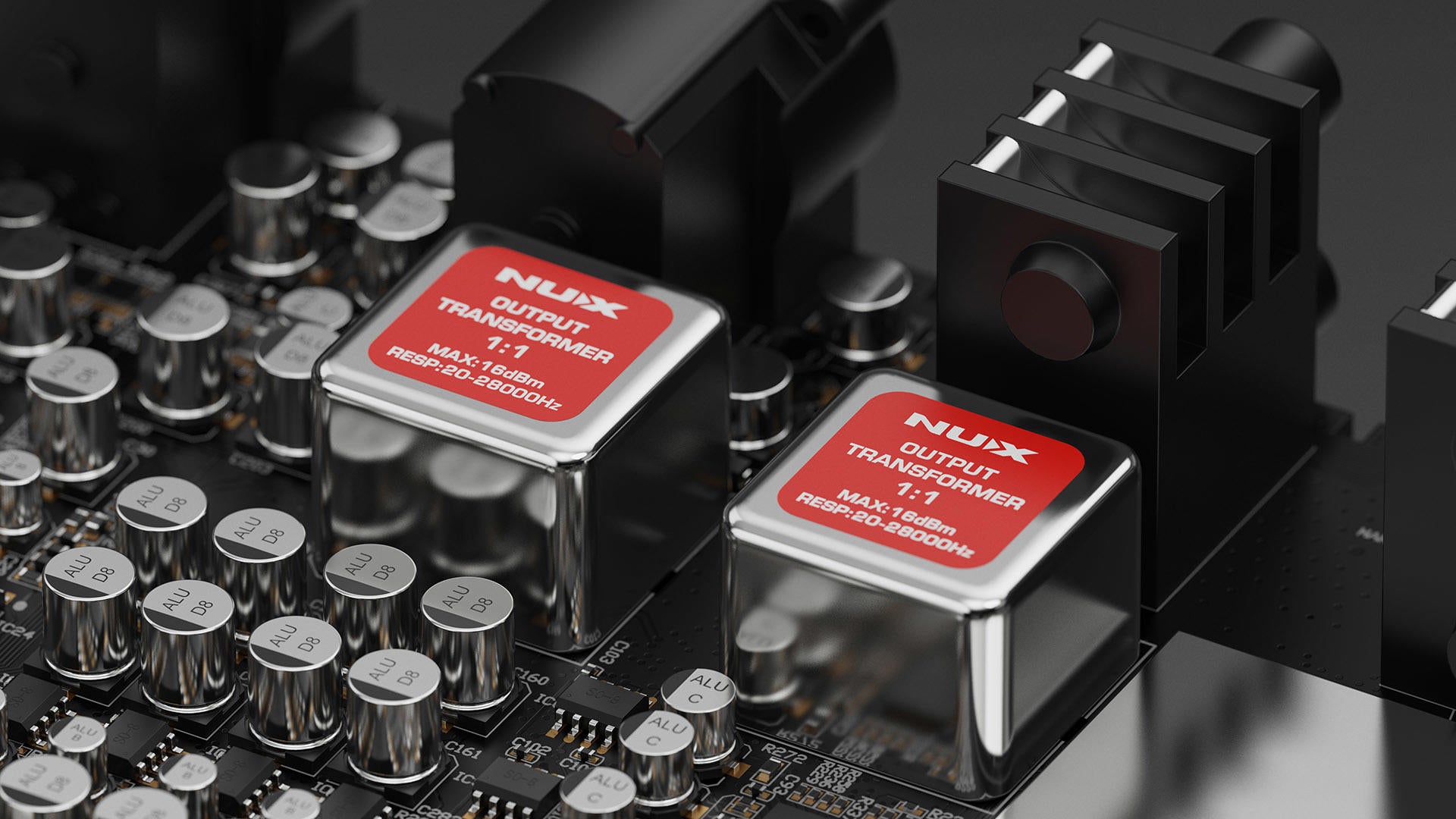

Audio Transformers: A High-Quality Choice
Investing in studio-grade audio transformers at the main output (1L/2R), providing warm sound characteristics and achieving electrical isolation to avoid ground loop interference.
(Note: Even when connecting unbalanced outputs at 1L/2R, balanced output signal strength is still maintained.)

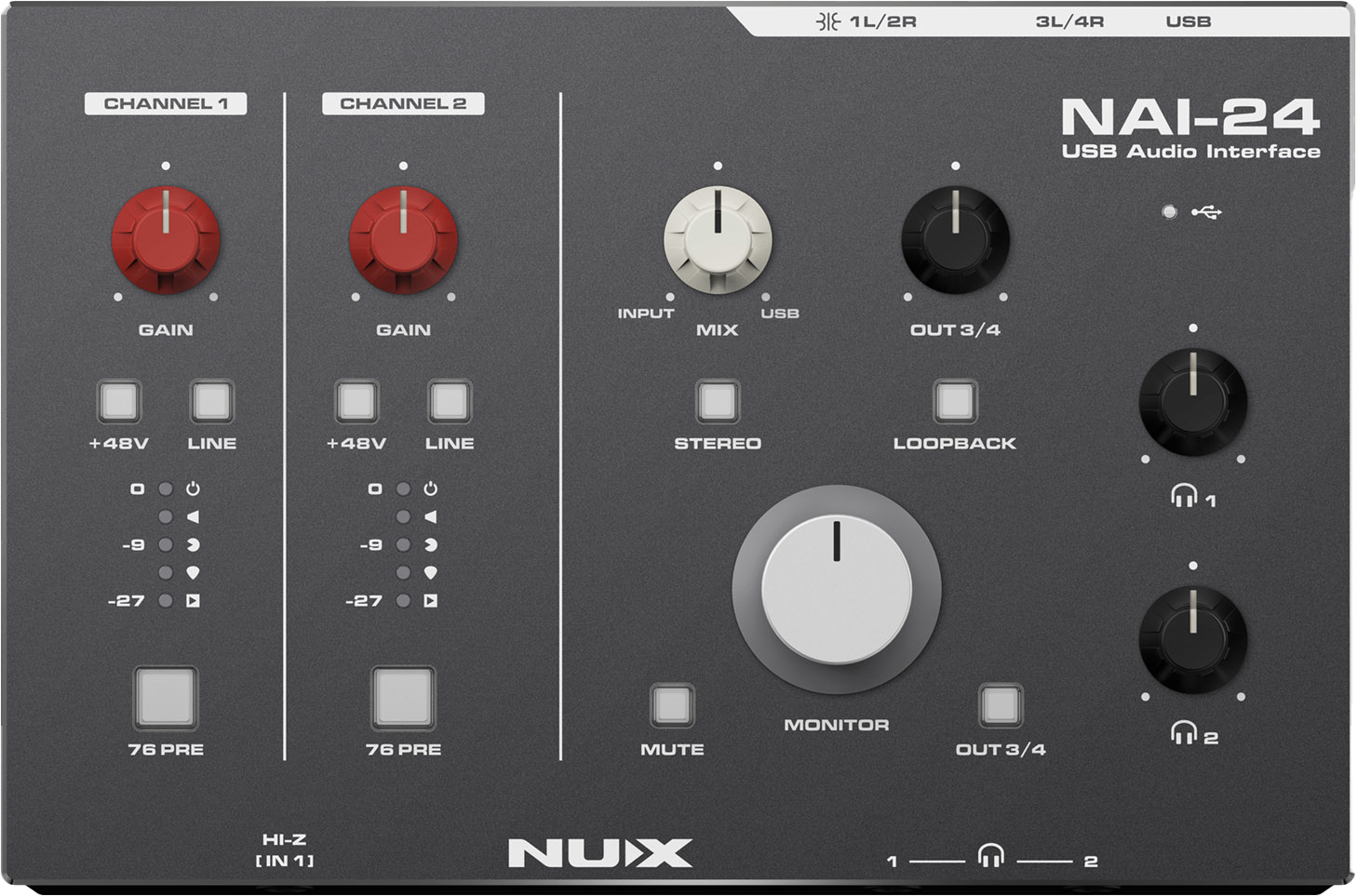

Simple and User-Friendly
The NAI-24 is a user-friendly 2-input, 4-output audio interface, providing independent 48V phantom power control and LINE IN switching buttons. Features include HI-Z input, dual headphone independent monitoring, soft/hard monitoring mix adjustment, one-click stereo mode switching, and one-click loopback.
With an ultra-low latency of 3.17ms at 192kHz 32 sample buffer, it meets professional needs.

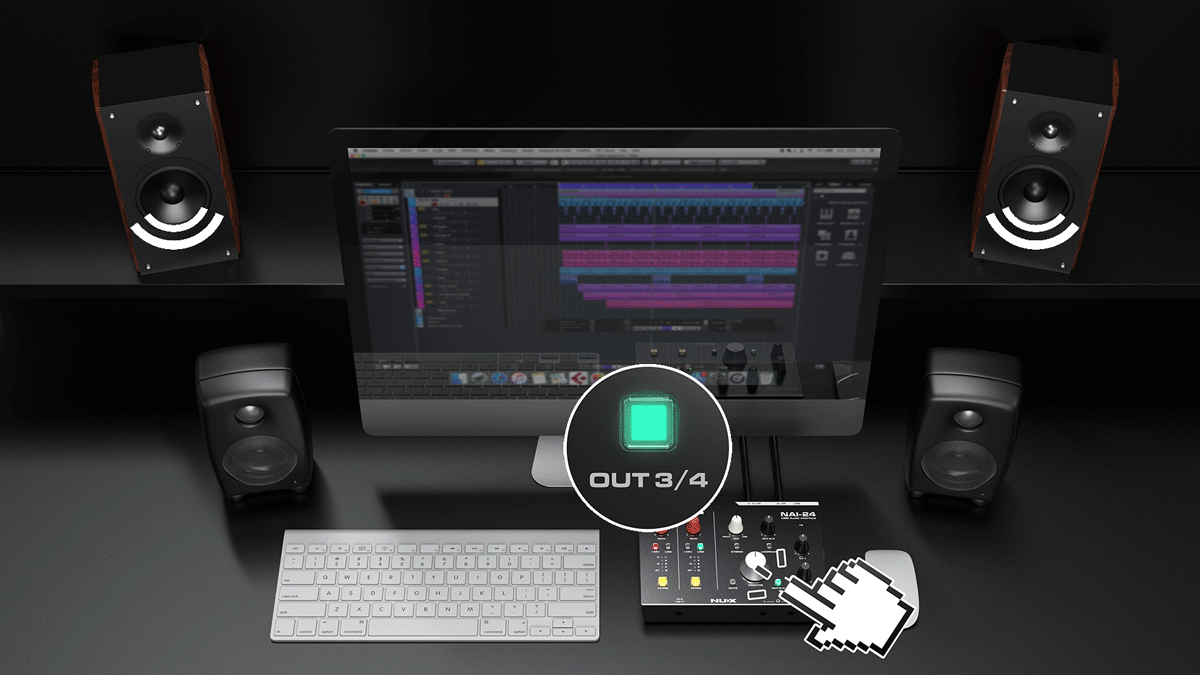

One Pair ? No, you need two pairs.
A/B Mode:In this mode, you can connect active monitor speakers to the outputs (1L/2R and 3L/4R) simultaneously, and achieve one-click monitoring switching by pressing the (OUT 3/4) button.
Let Me Hear It
Recording Mode:In this mode, when using the main channel (1L/2R), pressing the (OUT3/4) button allows you to monitor the sound sent to the 3/4 channels with one-click. (e.g., the sound engineer needs to temporarily monitor the tracks sent to the recording musicians.)
Add External Effects to Existing Recordings
In recording mode, easily connect to various rack and external effect devices for re-recording.
Support Your Music Journey
Includes a licensed professional recording software: CUBASE 13 LE.
