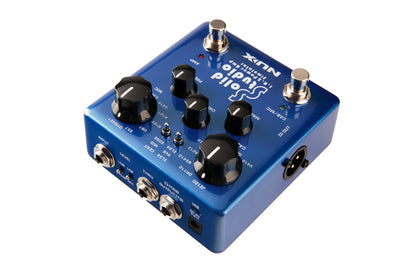

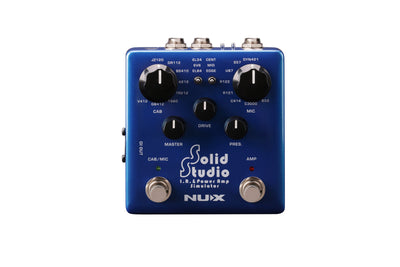

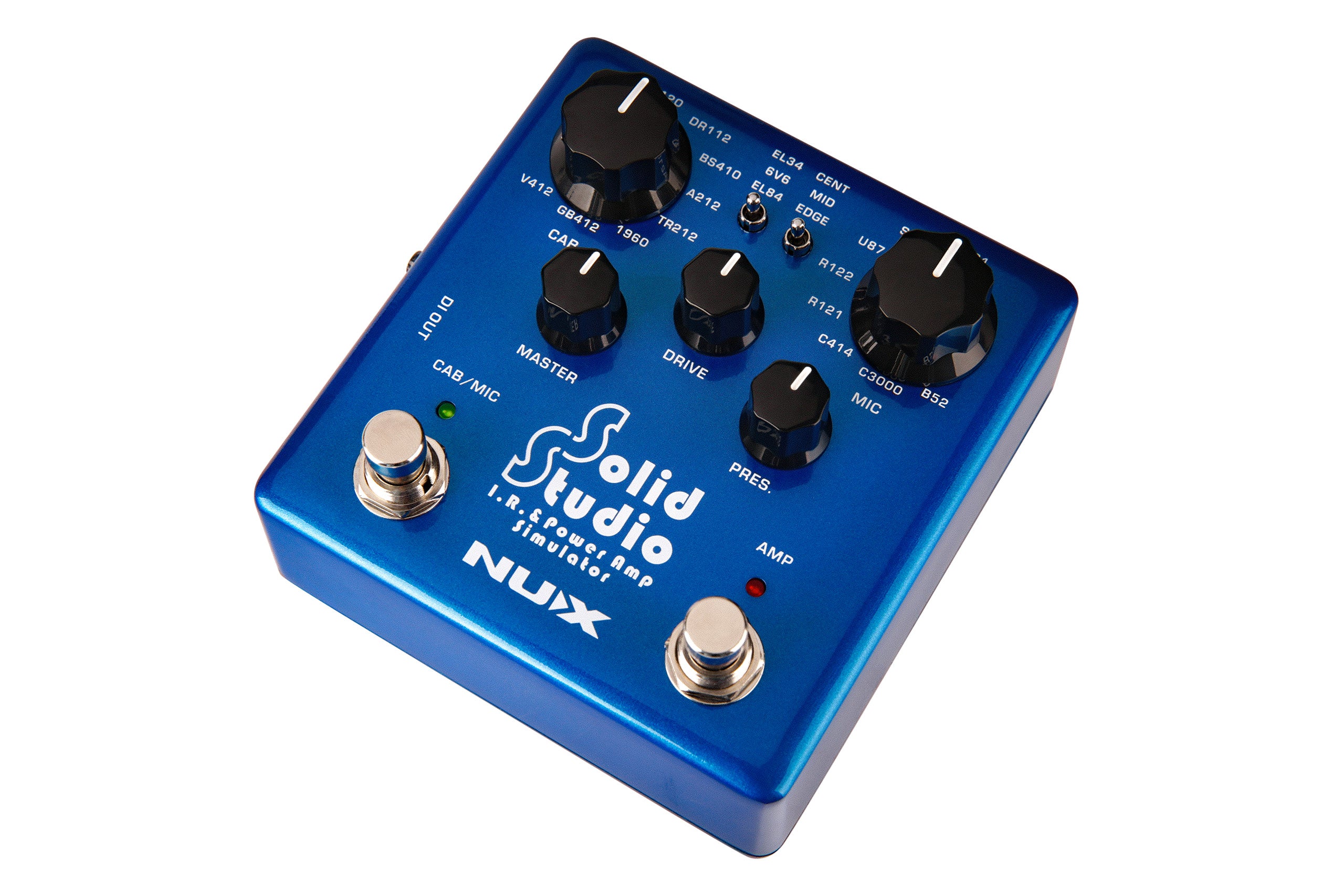

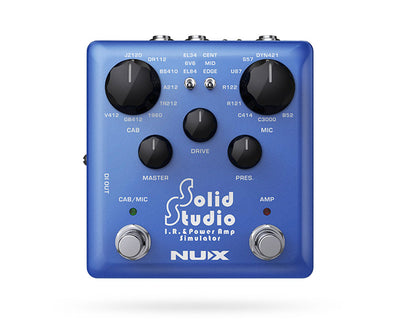

NUX Solid Studio Verdugo Series Premium Guitar Pedal

About the Solid Studio

NUX Solid Studio was created to address: limited gear availability, and the cumbersome transport reality of physical amp/speaker cabinets.

Over many years of research, Solid Studio was specifically developed to fill the essential needs of discerning musicians and sound technicians, including the art of mic-ing instrument amplifiers on stage or in the studio. Solid Studio provides ease-of-use, reliability, versatility, and, above all, incredible audio quality.

Virtual mic-ing is achieved by choosing 1 cabinet and 1 microphone, and fine-tuning the position of the microphone using the mic position switch. Plus, you can add the tube sound by engaging the power amp simulation.

What's Inside?

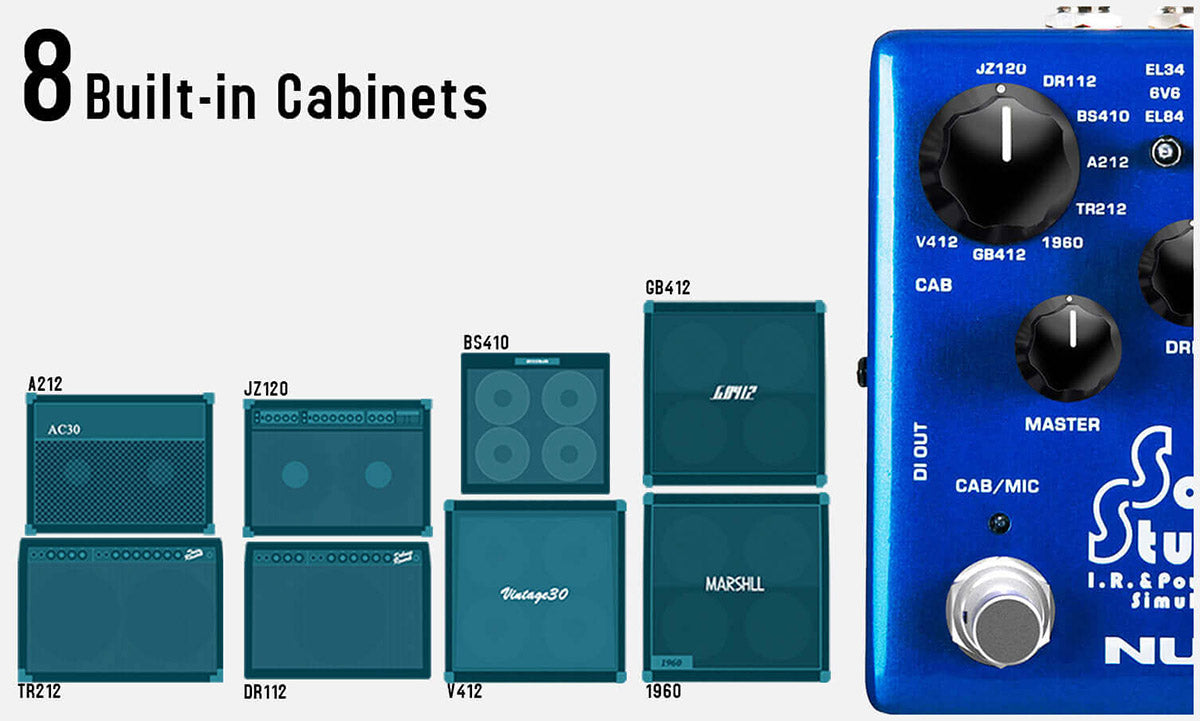

8 Built-in Cabinets

Solid Studio comes with 8 speaker cabinet simulations. All the cabinet models inside the Solid Studio sound and feel as great as their original counterparts.

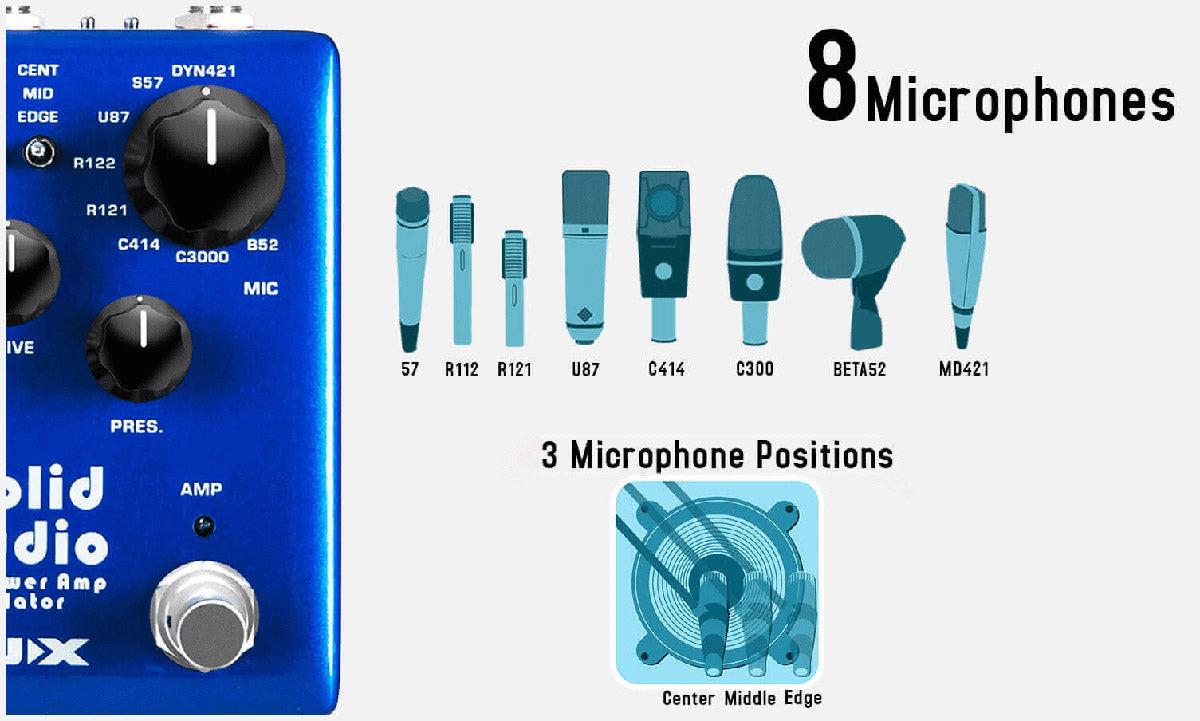

8 Microphone

And there are 8 microphone models you can combine with any cabinets. Also, you can adjust microphone position for fine tuning.

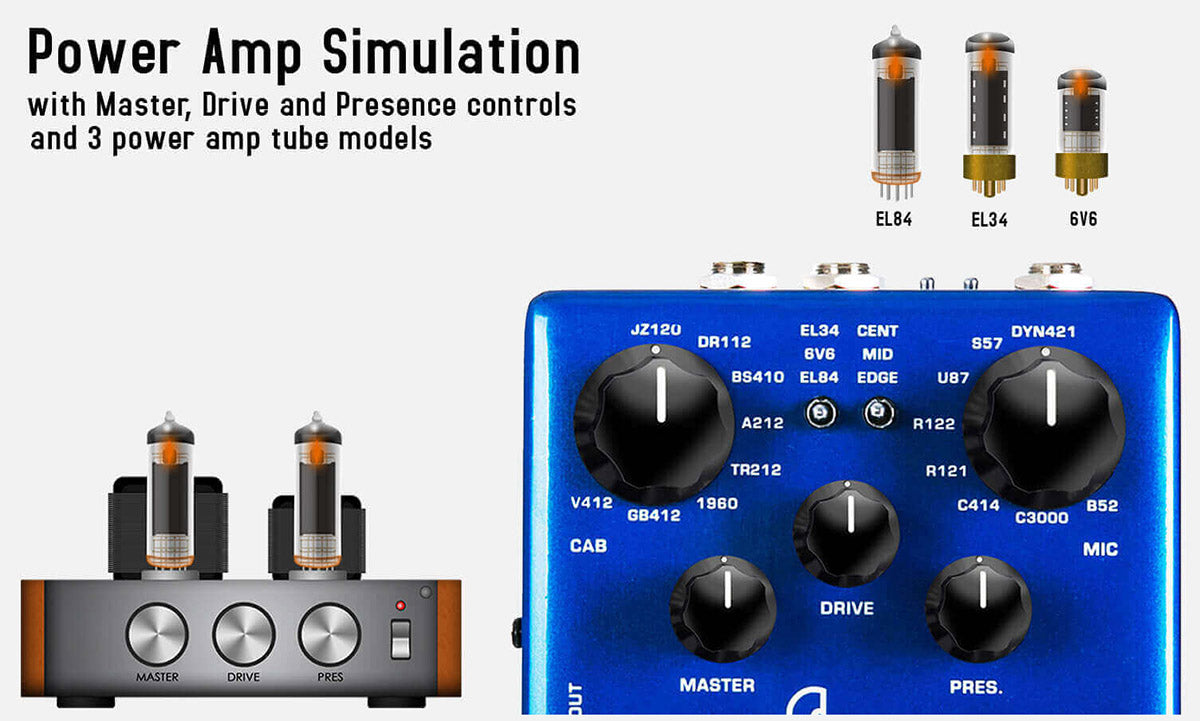

Power Amp Simulation

Solid Studio Power Amp Simulation offers three power tube models that deliver corresponding tonal characteristics: EL84, LE34 and 6V6.

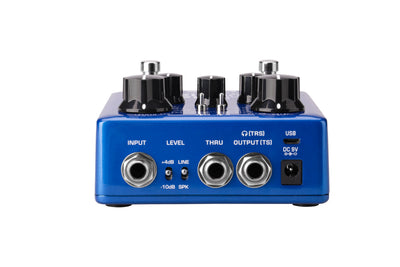

Input/Outputs

NUX Solid Studio has a 6.35mm mono input with an input signal level toggle switch (-10dB / +4dB) for fitting various instruments. And it has 3 outputs: simulation dedicated (TRS) STEREO OUTPUT and DI OUT, and a bypassed “THRU” output.

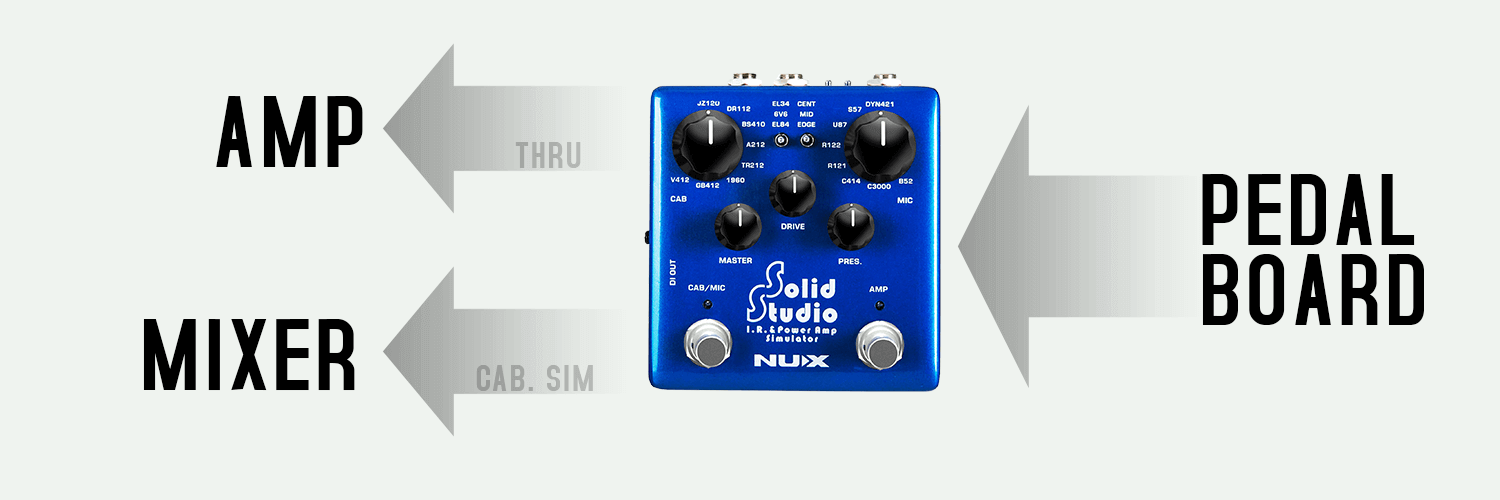

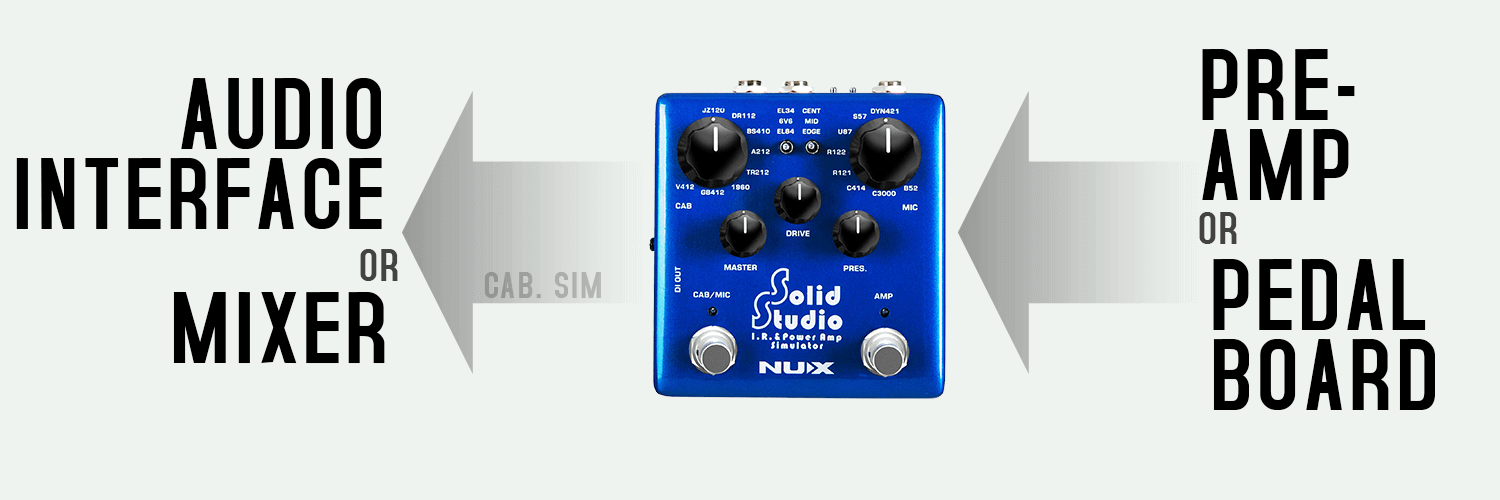

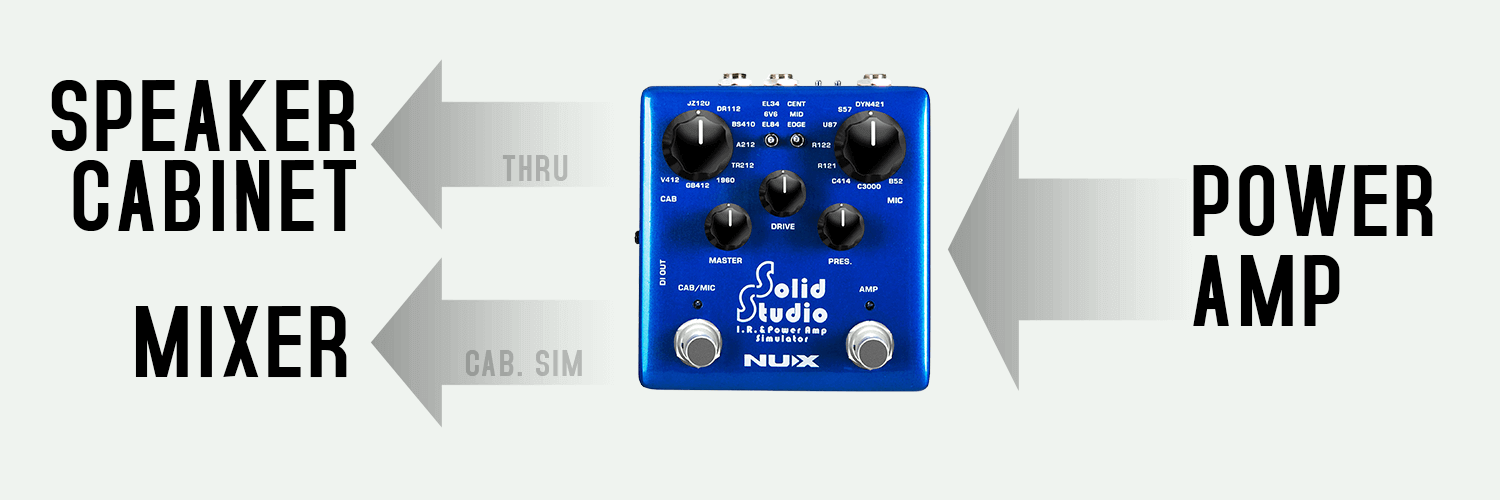

Connection Tips

Solid Studio offers a variety of connection solutions to give you correct guitar tones with or without a real speaker cabinet.

IR file support

You can easily emulate the sound of any guitar cabinet by loading different IR (Impulse response) files to NUX Solid Studio.

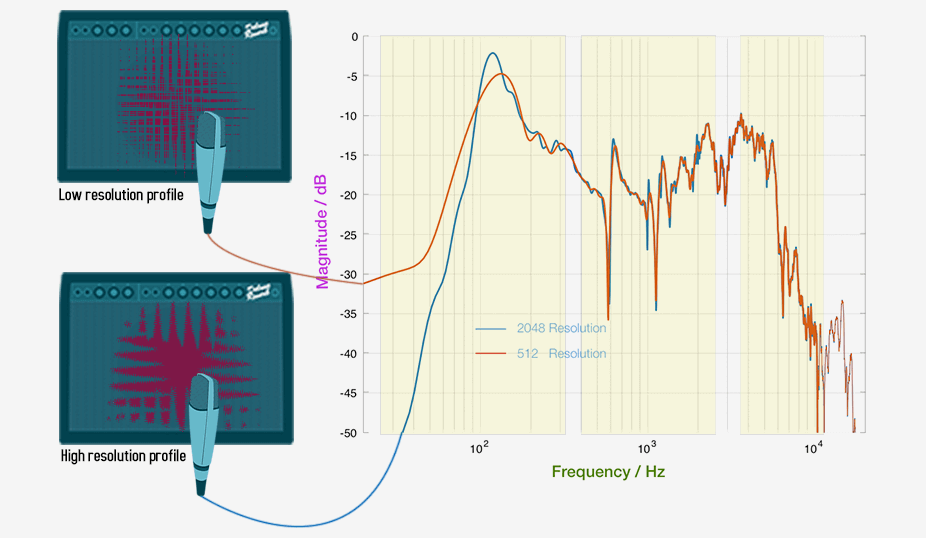

Technically, the Most Realistic IR Loader: Solid Studio

The Solid Studio’s IR resolution is 2048 samples and 46ms, which is higher than the common quality standard that most of IR loaders are using today: 1024 samples and 20ms capturing length. Some well-known profiler devices offer 2048 samples / 40ms length.

What makes the Solid Studio standout? It offers 46ms length which means it can perfectly read all the frequencies. Comparing the length, 20ms is already enough to capture a sound profile with an efficient result but it’s not enough to catch the lower frequencies. That’s why devices with high-quality usually provide 40ms length – it means higher resolution and better quality.

(If you are interested to read more advanced details click here)

The highest resolution quality limit of the IR is 50ms, it is the REAL sound.Considering all the process on the signal from your guitar to your ear, Solid Studio delivers the signal faster than the blink of an eye with the greatest result. Thanks to Solid Studio’s high-quality processor and perfect algorithm, the signal latency from input to output is less than 1ms.

Many of the IR loaders’ signal latency is around 2ms, and each additional digital pedal in the signal chain also increases the latency. For example, the fastest multi-effect pedal needs 2ms to deliver the sound, if you use an IR loader together with this multi-effect pedal, the total latency will be 4ms and a guitar player can ~barely~ feel that. If it’s more than 5ms it’s obviously slow and it’s not able to play.

IR Capture

You can capture any speaker’s profile easily with Solid Studio. Create your own IR file and save it.

First, make all the connections (you can see the picture below):

  • Adjust the microphone position and connect to the Mic Preamp.
  • Mic Preamp Output to Solid Studio Input.
  • Solid Studio Output to Power Amp in / Return.

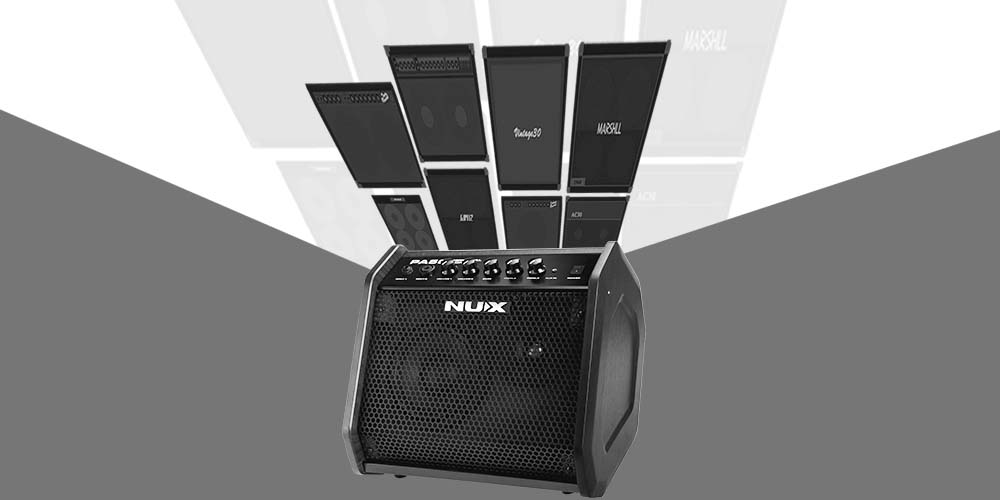

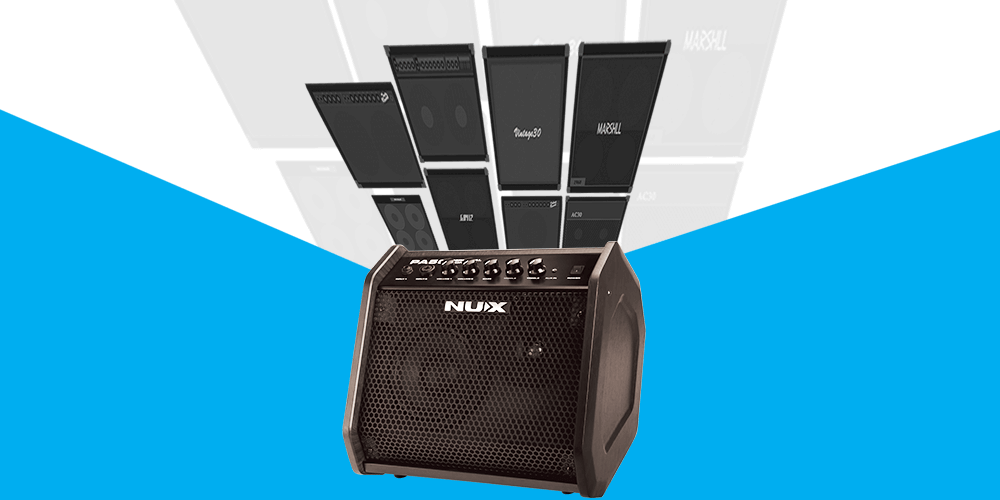

NUX PA-50 Full-Range Flat-Response Personal Monitor (FRFR)

You can get the real experience of Solid Studio with NUX PA-50 Personal Monitor, the second channel of the monitor is a Full Range Flat Response input. When you connect the Solid Studio thru that input, you can get the characteristic sound of the selected speaker profile from built-in or loaded IR file. NUX PA-50 can reflect any of your favorite speaker cabinet sound. To learn more about the amplifier click here.

*All the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD

What's Included

1 x Solid Studio MKII, User Manual
